High Quality multi function Wireless Charger ,Magnetic Wireless Charger 15W Wireless Charging for iPhone for IWatch for Earphone
Product Feature :
1,Intelligent identification charging equipment: compatible with most of brands mobile phones, watches and earphone equipment that meet QI standards;
2, This product supports the function of fast wireless charging, and realizes short charging by magnetic induction. Distance from wireless power transmission, this equipment is compatible with PD, QC2.0, QC3.0 and AFC charging.
3, Protocol, when the adapter with 5V output is used, the product supports the maximum wireless charging output power of 5W, and when the adapter with QC2.0 or above standard is used,
4, Supports the maximum wireless charging. Electrical output power 15W；; With FOD metal foreign body detection, over-temperature, over-voltage, over-current, contact short circuit and other safety protection,
5, Headphones can be stored and hung on the top of the bracket
Specification :
| Input | 5V3A,V9V2A |
| Output | 5W, 7.5W, 10W and 15W |
| Charging Efficiency | ≥83 % |
| Charging Distance | ≤8mm |
| Charging Frequency | 110-205kHz |
| Material | ABS + PC |
| size : | 267×101×16mm |
| Weight : | 400g |

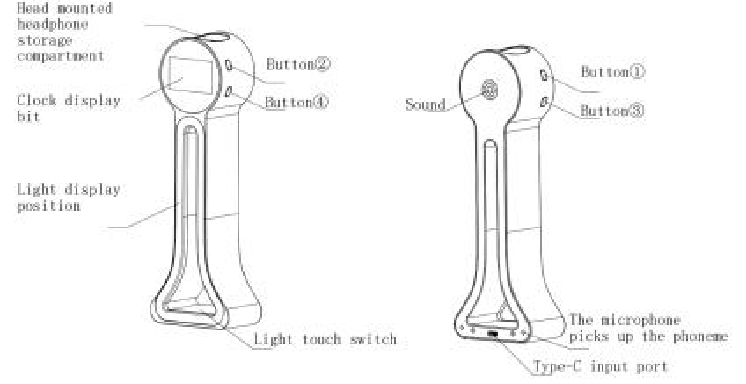

How to Use :
1, Press and hold the 2S button ① for a long time, and the year will flash. Click the button ②/button ④ to set the year.
2, Click button ① again, and the month will flash. Click button ②/④ to set the month.
3, Click button ① again, and the day will flash. Click button ②/④ to set the day. Click button ① again, and the time system will flash.
4,Click button ②/④ to set the time system. Click button ① again, and the hour will blink.
5,Click button ②/④ to set the hour. Click the button ① again, the minutes will flash, and click the button ②/④ to set the minutes. Press the 2S button ③ for a long time, and the alarm clock the button① will be displayed. Set the first alarm clock, and the hour will flash.
6, Click button ②/④ to set the hour. Click the button ③ again to blink for minutes, and then click Press. Press clock the button ②/④ to set the minute. Click the button ③ again, the alarm clock ② will be displayed, and the second setting will be set. An alarm clock flashes in hours.
7,Click button ②/ ④ to set the hours. Click the key again. ③ The minute flashes, and click button ②/④ to set the minute. After setting and exiting, click button ③ to select the alarm clock to be turned on. Press and hold the 2S button ④ to set the display mode.
Mode 1: Only display the current time. Mode 2: The current time is 50 seconds, the year is 3 seconds, and the month and day is 7 seconds, and it is displayed circularly.
